What is a Service?

May 23, 2024
Explore how services enhance system architecture through scalable designs, monitoring, and fault tolerance in our comprehensive guide.

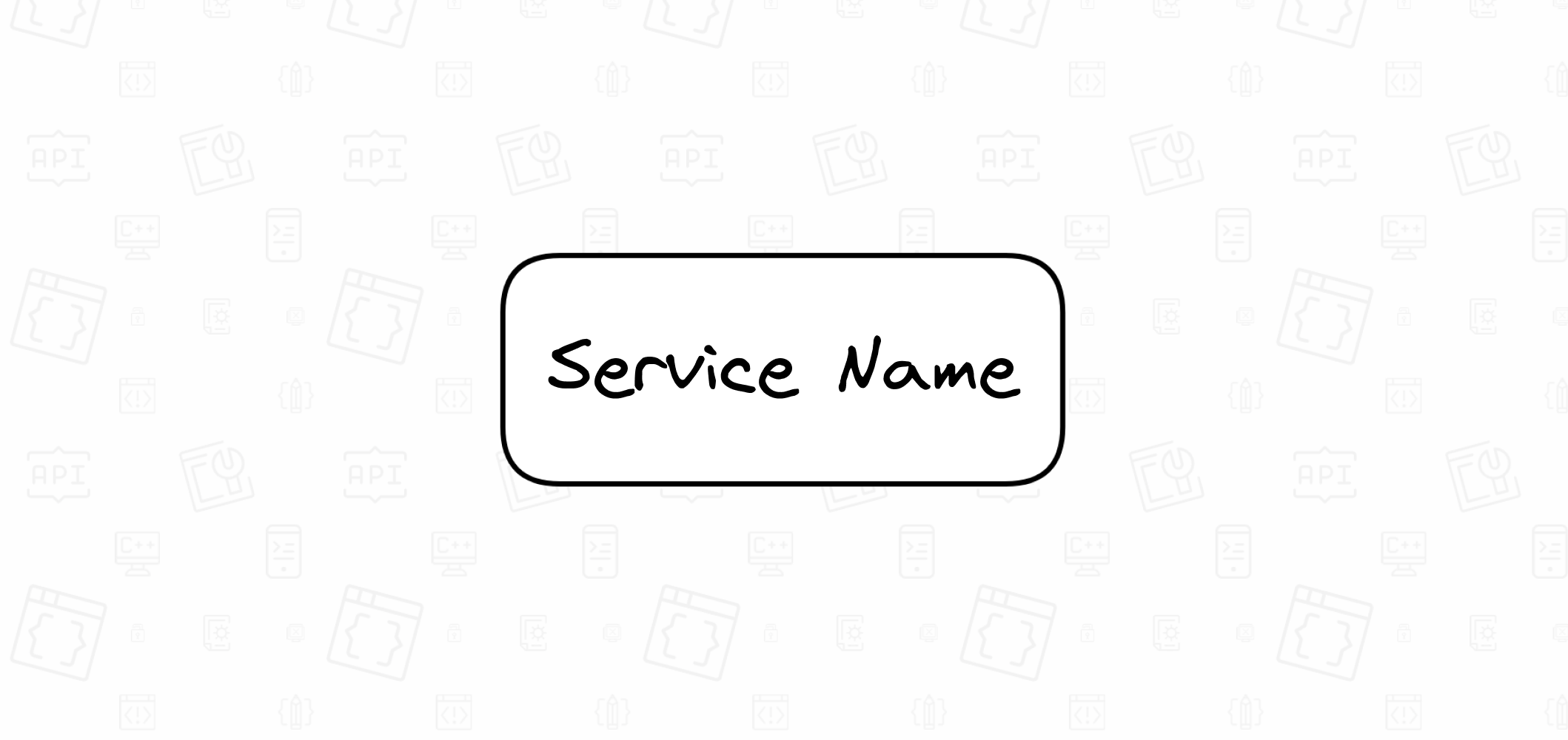

In any system architecture, services are fundamental components represented as dedicated software units with specific, well-defined roles. These services are the backbone of architecture diagrams, illustrating how various components of a system interact to perform complex tasks efficiently. An understanding of each service's function is crucial for building scalable, maintainable, and robust systems.
notion image

Service Interactions

Service interactions are critical for defining how different parts of a system communicate and cooperate to fulfill business requirements. For example, in an e-commerce system, a User Service might interact with an Inventory Service to check product availability. Diagrams illustrating these interactions help stakeholders understand data flows and dependencies within the system. This visibility is crucial for identifying potential bottlenecks and improving system design.

Scaling Services

As systems grow and user demand increases, scaling services becomes essential. One common approach is to deploy multiple instances of the same service. This not only handles increased load more effectively but also introduces redundancy. If one instance fails, others continue to operate, ensuring high availability.

Representing Multiple Instances in a Diagram

In system diagrams, multiple instances can be represented by duplicating the service symbol and connecting them with a load balancer, which distributes incoming traffic evenly. This setup should be clearly marked to communicate the system’s ability to scale and handle increased loads efficiently.

Monitoring and Maintenance of Services

Ongoing monitoring and maintenance are key to ensuring that services operate smoothly and meet performance benchmarks. Tools like Prometheus and Grafana provide real-time metrics and dashboards that can be integrated into system diagrams to show monitoring capabilities.

Tools for Service Monitoring

Including icons or notes about monitoring tools in system diagrams provides insights into the health and performance of each service. This not only helps in proactive maintenance but also assures stakeholders of the system’s reliability.

High Availability and Fault Tolerance

To maximize system uptime and reliability, implementing high availability and fault tolerance mechanisms is essential. Techniques such as service replication across multiple data centers and automatic failover processes can significantly enhance system resilience.

Diagramming Fault Tolerance

Fault tolerance can be visualized in diagrams through representations of redundant data paths and standby instances. These visual cues help explain how the system manages failures and continues to function without disrupting user experiences.

Load Distribution

notion image
Effective load distribution is crucial for managing the traffic directed at multiple service instances. Load balancers are employed to ensure that no single service instance becomes a bottleneck.

Tools and Methods for Load Balancing

System diagrams should include load balancers to illustrate how traffic is distributed among services. This not only highlights the system’s efficiency in managing load but also its ability to scale dynamically based on demand.


Detailed architecture diagrams that include service interactions, scaling strategies, monitoring setups, and high availability plans play a vital role in communicating the intricacies of a complex system. They ensure that all stakeholders have a clear understanding of how the system is designed to perform under various conditions. By continuously refining these diagrams and incorporating real-world feedback, system architects can enhance the design and operation of the architecture, leading to more robust, efficient, and user-friendly systems.
